Pointwork

We have a range of standard pointwork for all gauges from 3 1/2 to 10 1/4in.They are of a robust construction to withstand heavy traffic. Each crossing nose is individually machined to suit radius. Switch blades are properly machined and stock rails recessed to ensure a snug fit for the switch blades. The tie bar can be supplied fitted to a spring or lever as required.

POINTS IN CROMAR WHITE LIGHT ALLOY RAIL

For 3½in gauge:
Available with turnout radius: 6.09M, or 10.66M

For 5in gauge:
Available with turnout radius: 4.57M, 6.09M, 10.66M, 12.80M, 19.81M

3½/5in Mixed Gauge Radius:10.66M
5/7¼in Mixed Gauge Radius:12.19M
5/7¼in Mixed Gauge Y Point Radius:15M

For 7¼in gauge:
Left or Right Hand in following radius of turnout:-
Radius: 4.87M, Length:3M
Radius:12.19M, Length:3M
Radius: 6.09M, Length:2.46M
Radius:15.24M, Length:3M
Radius:10.66M, Length:3M
Radius:18.22M, Length:3M

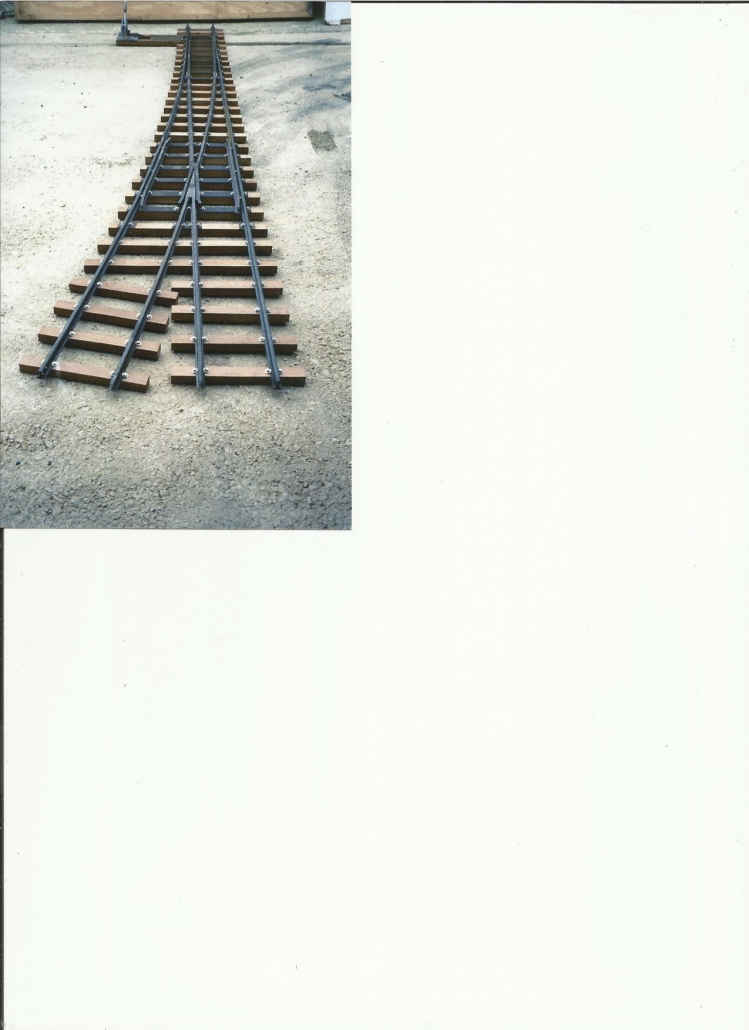

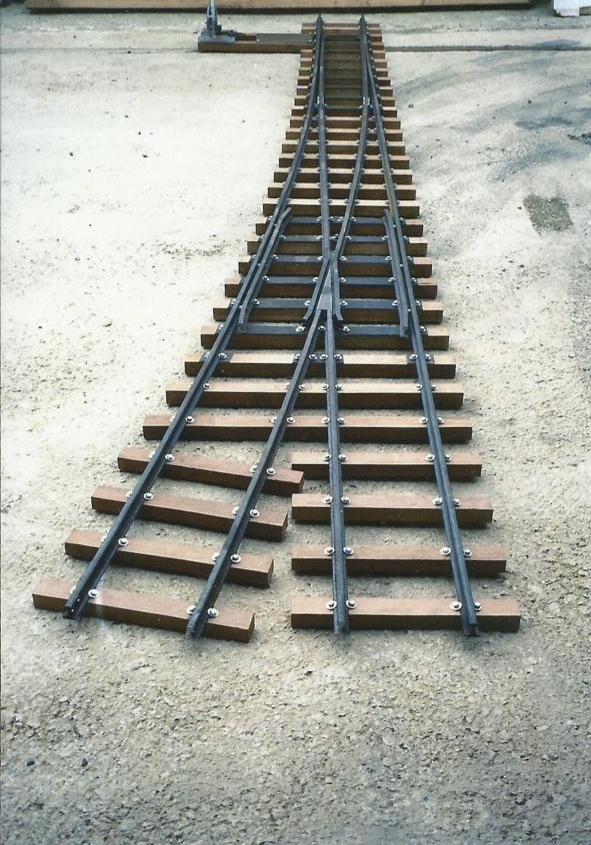

‘Y’ Point in following radius:-
Radius:9.14M, Length:1.83M
Radius:15.24M, Length:3M

POINTS IN CROMAR WHITE STEEL OR MEDIUM OR HEAVY ALLOY RAIL

For 7¼in gauge:
Radius: 9.14M, Length:3M
Radius:24.38M, Length:4.57M
Radius:12.19M, Length:3M
Radius:30.48M, Length:4.57M
Radius:15.24M, Length:3.66M
‘Y’ Point – Radius: 9.75/12.19M, Length: 3M
‘Y’ Point – Radius: 12.19M, Length: 2.28M
‘Y’ Point – Radius: 15.24M, Length: 1.83M
Diamond Crossing – Length 2.41M
Single Slip – Radius:15.24M, Length: 4.57M

For 10¼in gauge:
Available with turnout radius: 3.65M, 30.48M, 18.28M, 51.20M, 24.38M

Also available:
7¼/10¼in Mixed Gauge 24.38M Radius Point.
